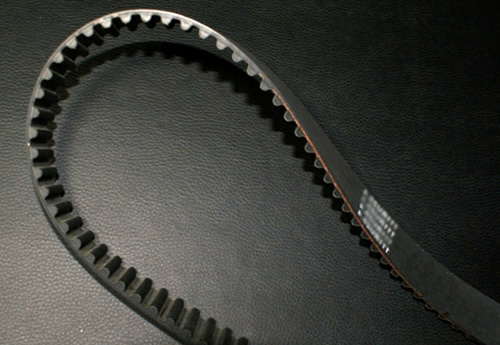

Auto Timing Belt
Automotive belt is used to transmit synchronous movement from one driven shaft to another.It has the feature of oil and heat resistant,aging-resistant,non-slip,small elongation and long life. StandardA use international recognised raw material formulation to produce belt with outstanding stability. All StandardA automotive belt meet or exceed OEM specifications.
Material: CR, HNBR.
HNBR timing belt has below better performance:
- HNBR has extremely low expansibility and higher oil resistance
- The dynamic characteristics of HNBR is better than CR timing belt
- Excellent abrasion acts to extend the belt life and reduce noise pollution
Tooth type of StandardA automotive timing belt:
ZA, ZB, MR, RU, RS, RPP, ZAS, ZBS, YU, S8M and STD
| Section |
Pitch (mm) |
Teeth Height (mm) |
Thickness (mm) |
| ZA |
9.525 |
1.91 |
4.1 |
| ZB |
9.525 |
2.3 |
4.5 |
| ZBS |
9.525 |
2.8 |
5.1 |
| RU |
9.525 |
3.44 |
5.7 |
| MR |
9.525 |
3.54 |
5.69 |
| RS |
9.525 |
3.6 |
5.8 |
| YU |
8 |
3 |
5.2 |
| MY |
8 |
3.06 |
5.2 |
| S8M |
8 |
3.05 |
5.3 |
| Specification |
Teeth Type |
Number of Teeth |
Application |
| 52ZA |
ZA |
52 |
|
| 54ZA |
ZA |
54 |
Fiat |
| 55ZA |
ZA |
55 |
Mitsubishi |
| 63ZA |
ZA |
63 |
Daihatsu |
| 68ZA |
ZA |
68 |
|
| 69ZA |
ZA |
69 |
Nissan |
| 84ZA |
ZA |
84 |
Toyota,Honda, Suzuki |
| 85ZA |
ZA |
85 |
|
| 88ZA |
ZA |
88 |
Chevrolet, Suzuki,Toyota |
| 89ZA |
ZA |
89 |
Chevrolet, Suzuki |
| 90ZA |
ZA |
90 |
Daihatsu |
| 91ZA |
ZA |
91 |
Daihatsu,Nissan |
| 92ZA |
ZA |
92 |
Honda, Hyundai, Mitsubishi |
| 94ZA |
ZA |
94 |
Toyota |
| 95ZA |
ZA |
95 |
Honda,Nissan |
| 97ZA |
ZA |
97 |
|
| 98ZA |
ZA |
98 |
Alfa, Nissan,Romco |
| 99ZA |
ZA |
99 |
|
| 100ZA |
ZA |
100 |
|
| 102ZA |
ZA |
102 |
Rover |
| 104ZA |
ZA |
104 |
|
| 106ZA |
ZA |
106 |
Ford,Mazda,Nissan |
| 108ZA |
ZA |
108 |
|
| 109ZA |
ZA |
109 |
|
| 110ZA |
ZA |
110 |
|
| 111ZA |
ZA |
111 |
BMW,Isuzu,Toyota |
| 115ZA |
ZA |
115 |
ISUZU |
| 116ZA |
ZA |
116 |
|
| 117ZA |
ZA |
117 |
|
| 118ZA |
ZA |
118 |
|
| 119ZA |
ZA |
119 |
|
| 120ZA |
ZA |
120 |
AUDI, VOLKSWAGEN |
| 121ZA |
ZA |
121 |
AUDI, VOLKSWAGEN |
| 122ZA |
ZA |
122 |
Mitsubishi |
| 123ZA |
ZA |
123 |
|
| 124ZA |
ZA |
124 |
Chrysler,Dodge |
| 125ZA |
ZA |
125 |
|
| 126ZA |
ZA |
126 |
|
| 127ZA |
ZA |
127 |
Toyota |
| 129ZA |
ZA |
129 |
|
| 133ZA |
ZA |
133 |
|
| 134ZA |
ZA |
134 |
|
| 138ZA |
ZA |
138 |
|
| 139ZA |
ZA |
139 |
Fiat, Toyota |
| 142ZA |
ZA |
142 |
|
| 143ZA |
ZA |
143 |
|
| 144ZA |
ZA |
144 |
|
| 146ZA |
ZA |
146 |
|
| 148ZA |
ZA |
148 |
|
| 153ZA |
ZA |
153 |
|
| |
|
|
|
| 75ZB |
ZB |
75 |
|
| 87ZB |
ZB |
87 |
Isuzu |
| 119ZB |
ZB |
119 |
|
| 122ZB |
ZB |
122 |
Mitsubishi |
| 130ZB |
ZB |
130 |
Ford |
| 134ZB |
ZB |
134 |
|
| 135ZB |
ZB |
135 |
|
| 136ZB |
ZB |
136 |
Opel, Mazada |
| 137ZB |
ZB |
137 |
Audi |
| 153ZB |
ZB |
153 |
|
| |
|
|
|
| 59RU |
RU |
59 |
|
| 65RU |
RU |
65 |
|
| 70RU |
RU |
70 |
Honda, Sanyang, Rover |
| 87RU |
RU |
87 |
|
| 89RU |
RU |
89 |
Suzuki |
| 91RU |
RU |
91 |
Daihatsu, Subaru |
| 92RU |
RU |
92 |
Hyundai |
| 93RU |
RU |
93 |
Daihatsu, Subaru |
| 94RU |
RU |
94 |
|
| 95RU |
RU |
95 |
Suzuki, Chevrolet |
| 96RU |
RU |
96 |
|
| 97RU |
RU |
97 |
Suzuki, Ford |
| 99RU |
RU |
99 |
|
| 101RU |
RU |
101 |
Citroen, Opel |
| 103RU |
RU |
103 |
Daihatsu, Honda, Suzuki |
| 104RU |
RU |
104 |
Asia, Ford, Mazada |
| 105RU |
RU |
105 |
Honda |
| 106RU |
RU |
106 |
Honda |
| 107RU |
RU |
107 |
Honda |
| 108RU |
RU |
108 |
|
| 109RU |
RU |
109 |
|
| 110RU |
RU |
110 |
|
| 111RU |
RU |
111 |
Hyundai, Nissan |
| 112RU |
RU |
112 |
Honda |
| 113RU |
RU |
113 |
Honda, Nissan |
| 116RU |
RU |
116 |
|
| 117RU |
RU |
117 |
|
| 118RU |
RU |
118 |
|
| 119RU |
RU |
119 |
|
| 120RU |
RU |
120 |
Mitsubishi |
| 122RU |
RU |
122 |
Mitsubishi |
| 123RU |
RU |
123 |
Mitsubishi |
| 124RU |
RU |
124 |
Chrysler, Honda,Jeep |
| 125RU |
RU |
125 |
|
| 126RU |
RU |
126 |
Dodge |
| 127RU |
RU |
127 |
Daewoo |
| 129RU |
RU |
129 |
Ford, Honda,Volkswagen |
| 131RU |
RU |
131 |
|
| 132RU |
RU |
132 |
|
| 133RU |
RU |
133 |
|
| 134RU |
RU |
134 |
|
| 134RU |
RU |
134 |
|
| 136RU |
RU |
136 |
|
| 140RU |
RU |
140 |
|
| 142RU |
RU |
142 |
|
| 144RU |
RU |
144 |
|
| 149RU |
RU |
149 |
Hyundai, Mitsubishi |
| 150RU |
RU |
150 |
|
| 151RU |
RU |
151 |
|
| 153RU |
RU |
153 |
Hyundai |
| 156RU |
RU |
156 |
Hyundai, Mitsubishi |
| 157RU |
RU |
157 |
|
| 158RU |
RU |
158 |
|
| 163RU |
RU |
163 |
Hyundai, Mitsubishi |
| 176RU |
RU |
176 |
|
| 192RU |
RU |
192 |
|
| 196RU |
RU |
196 |
|
| 197RU |
RU |
197 |
|
| |
|
|
|
| 52MR |
MR |
52 |
|
| 87MR |
MR |
87 |
|
| 92MR |
MR |
92 |
|
| 94MR |
MR |
94 |
Toyota |
| 95MR |
MR |
95 |
|
| 96MR |
MR |
96 |
|
| 97MR |
MR |
97 |
|
| 100MR |
MR |
100 |
|
| 101MR |
MR |
101 |
Honda |
| 102MR |
MR |
102 |
|
| 103MR |
MR |
103 |
Daihatsu |
| 104MR |
MR |
104 |
Austin,Proton, Opel |
| 105MR |
MR |
105 |
|
| 106MR |
MR |
106 |
Ford, Kia, Mazada |
| 107MR |
MR |
107 |
Honda |
| 108MR |
MR |
108 |
Fukang, Honda, Peugeot |
| 109MR |
MR |
109 |
Ford,Mazada |
| 110MR |
MR |
110 |
Austin, BMW, Rover |
| 111MR |
MR |
111 |
Lada, Daewuo, Opel |
| 112MR |
MR |
112 |
|
| 113MR |
MR |
113 |
Toyota, Fukang |
| 114MR |
MR |
114 |
Fukang, Citroen |
| 116MR |
MR |
116 |
|
| 118MR |
MR |
118 |
Citroen, Eagle, Landrover |
| 124MR |
MR |
124 |
Renault, Toyota, Volvo |
| 125MR |
MR |
125 |
Daewoo, Renault, Volvo |
| 127MR |
MR |
127 |
Renault, Toyota, Volvo |
| 129MR |
MR |
129 |
Toyota, Honda |
| 130MR |
MR |
130 |
Toyota |
| 133MR |
MR |
133 |
Honda, Citroem |
| 136MR |
MR |
136 |
Peugeot |
| 138MR |
MR |
138 |
|
| 146MR |
MR |
146 |
|
| 146MR |
MR |
146 |
|
| 147MR |
MR |
147 |
|
| 148MR |
MR |
148 |
|
| 149MR |
MR |
149 |
|
| 151MR |
MR |
151 |
|
| 153MR |
MR |
153 |
|
| 177MR |
MR |
177 |
Toyota, Daihatsu |
| |
|
|
|
| 65YU |
YU |
65 |
Hyundai, Mitsubishi |
| 99YU |
YU |
99 |
Daihatsu,Hyundai, Perodua |
| 100YU |
YU |
100 |
|
| 101YU |
YU |
101 |
Citroen, Peugeot |
| 103YU |
YU |
103 |
Perodua |
| 106YU |
YU |
106 |
|
| 107YU |
YU |
107 |
Mazda, Mitsubishi |
| 109YU |
YU |
109 |
Subara |
| 110YU |
YU |
110 |
|
| 111YU |
YU |
111 |
Mitsubishi |
| 113YU |
YU |
113 |
|
| 116YU |
YU |
116 |
|
| 117YU |
YU |
117 |
Mitsubishi |
| 121YU |
YU |
121 |
|
| 123YU |
YU |
123 |
|
| 126YU |
YU |
126 |
|
| 127YU |
YU |
127 |
|
| 133YU |
YU |
133 |
Mazda |
| 134YU |
YU |
134 |
|
| 135YU |
YU |
135 |
Mazda |
| 143YU |
YU |
143 |
|
| 145YU |
YU |
145 |
Mazda |
| 153YU |
YU |
153 |
|
| 154YU |
YU |
154 |
|
| 155YU |
YU |
155 |
|
| 156YU |
YU |
156 |
|
| 162YU |
YU |
162 |
|
| 168YU |
YU |
168 |
|
| 187YU |
YU |
187 |
|
| 195YU |
YU |
195 |
|
| 197YU |
YU |
197 |
|
| 200YU |
YU |
200 |
|
| 201YU |
YU |
201 |
|
| 202YU |
YU |
202 |
|
| 207YU |
YU |
207 |
|
| 211YU |
YU |
211 |
|
| 223YU |
YU |
223 |
|
| 226YU |
YU |
226 |
|
| 253YU |
YU |
253 |
|
| 257YU |
YU |
257 |
|
| 265YU |
YU |
265 |
|
| 281YU |
YU |
281 |
|
| 281YU |
YU |
281 |
|
| |
|
|
|
| 99MY |
MY |
99 |
Daihatsu |
| 100MY |
MY |
100 |
Suzuki |
| 103MY |
MY |
103 |
Daihatsu |
| 107MY |
MY |
107 |
Ford, Mazda |
| 111MY |
MY |
111 |
|
| 116MY |
MY |
116 |
|
| 117MY |
MY |
117 |
Ford, Nissan |
| 121MY |
MY |
121 |
Toyota |
| 123MY |
MY |
123 |
Toyota |
| 124MY |
MY |
124 |
Toyota |
| 127MY |
MY |
127 |
Toyota |
| 128MY |
MY |
128 |
|
| 135MY |
MY |
135 |
|
| 138MY |
MY |
138 |
|
| 143MY |
MY |
143 |
Toyota |
| 144MY |
MY |
144 |
|
| 145MY |
MY |
145 |
|
| 148MY |
MY |
148 |
|
| 153MY |
MY |
153 |
|
| 159MY |
MY |
159 |
|
| 177MY |
MY |
177 |
|
| 178MY |
MY |
178 |
|
| 191MY |
MY |
191 |
|
| 197MY |
MY |
197 |
|
| 211MY |
MY |
211 |
|
| 223MY |
MY |
223 |
|
| |
|
|
|
| 58S8M |
S8M |
58 |
|
| 110S8M |
S8M |
110 |
|
| 112S8M |
S8M |
112 |
|
| 115S8M |
S8M |
115 |
|
| 128S8M |
S8M |
128 |
|
| 130S8M |
S8M |
130 |
|
| 132S8M |
S8M |
132 |
|
| 133S8M |
S8M |
133 |
|
| 134S8M |
S8M |
134 |
|
| 135S8M |
S8M |
135 |
|
| 137S8M |
S8M |
137 |
|
| 138S8M |
S8M |
138 |
Volkswagen |
| 141S8M |
S8M |
141 |
Nissan |
| 142S8M |
S8M |
142 |
|
| 146S8M |
S8M |
146 |
|
| 147S8M |
S8M |
147 |
|
| 148S8M |
S8M |
148 |
|
| 150S8M |
S8M |
150 |
Audi, Volkswagen |
| 151S8M |
S8M |
151 |
|
| 152S8M |
S8M |
152 |
|
| 153S8M |
S8M |
153 |
|
| 158S8M |
S8M |
158 |
|
| 162S8M |
S8M |
162 |
Mazada |
| 163S8M |
S8M |
163 |
Toyota |
| 164S8M |
S8M |
164 |
Kia, Ford, Mazda |
| 169S8M |
S8M |
169 |
|
| 171S8M |
S8M |
171 |
|
| 173S8M |
S8M |
173 |
|
| 175S8M |
S8M |
175 |
|
| 176S8M |
S8M |
176 |
|
| 179S8M |
S8M |
179 |
|
| 191S8M |
S8M |
191 |
|
| 192S8M |
S8M |
192 |
|
| 193S8M |
S8M |
193 |
|
| 209S8M |
S8M |
209 |
|
| 211S8M |
S8M |
211 |
|
| 218S8M |
S8M |
218 |
|
| 223S8M |
S8M |
223 |
|
| 225S8M |
S8M |
225 |
|
| 239S8M |
S8M |
239 |
|
| 253S8M |
S8M |
253 |
|
|
