Cotton Conveyor Belt
Products properities:

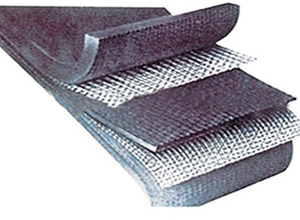

A- Cotton canvas is woven by cotton fibers both in warp and in weft, its elongation is relatively low, it is good in mechanical fastening and adhesion with rubber.
B- Cotton conveyor belt has relatively small deformation under high temperature condition,suitable for short-distance and light-load transportation of materials.
C- Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt,and its tension resistant body is woven by polyester cotton fibers in warp and cotton ribers in weft.
D- Its comprehensive physical and mechanical characteristics are obviously better than those of cotton conveyor belt, especially the belt body is thinner and thus the belt lighter, the belt can reduce energy and material consumption for users.
E- It is the ideal selection for medium, short distance and medium-load transportation of materials.
Specification and technical data of multi-ply cotton,polyester cotton conveyor belt
| Fqbric type |
Fabric structure |
Fqbric type |
Fabric thickness |
Strength series
(N/mm) |
Cover Rubber thickness |
Width Mm |
Length m |
| Warp |
Weft |
2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
Lower |
Cotton
(Cc) |
Cotton
(c) |
Cotton
(c) |
CC-56 |
1.10 |
112 |
168 |
224 |
280 |
336 |
2-8 |
0-4.5 |
400-2500 |
≤300 |
Polyester Cotton
(Tc) |
Polyester Cotton
(Tc) |
Cotton
(c) |
TC-70 |
1.0 |
140 |
210 |
280 |
350 |
420 |
1.5-8 |
0-4.5 |
400-2500 |
≤300 |
The Adhesion and Elongation of the Belt
| Belt carcass |
Adhesion strength |
Elongation |
| Between plles N/mm |
Between rubber and carcass
N/mm |
Longtudinal elongation break |
Longtuainal elongation rate at reference load |
| Rubber thickness |
Rubber thickness |
| Cotton canvas |
≥2.70 |
≥2.4 |
≥2.7 |
10 |
2.0 |
The Common Grade of the Cover Rubber
| Cover grade |
Tensile strength |
Elongation at break |
Abrasion |
| Mpa |
% |
mm3 |
| H |
24 |
450 |
120 |
| D |
18 |
400 |
100 |
| L |
15 |
350 |
200 |
Remarks: H---High intensity working condition
D---High abrasion working condition
L---Normal working condition
Our company also can produce all kinds of performance conveyor belt under AS1332-2000、JISK6322；1999、DIN2212-1991 standards and so on...

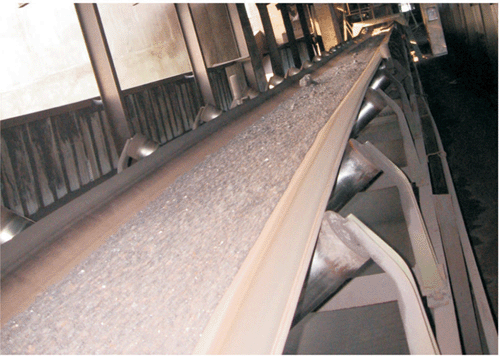

Application:
It is suitable for conveying materials with chemical corrosiveness in chemical factory,chemical fertilizer factory,paper mill,mining industry and etc. |
