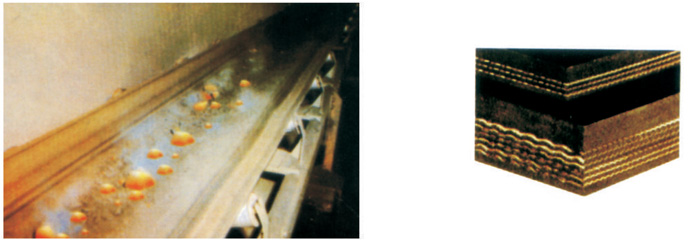

High Temperature Resistant Conveyor Belt
The belt carcass of this product is EP fabric of high modulus,low shrink,and high breaking tensile strength. Cover rubber of this product uses EPDM rubber or chlorobutadiene rubber that has very good high temperature resistance.The belt is made with extra care after mixing rubber with high temperature resistant materials,as sembling and vulcanizing.The carcass of this product has very high adhesion after thespecial trestment of coating and shaping. Under normla working temperature of below 180℃ , the belt is low in elongation , excellent in anti-abrasion , and can bear 250℃ high temperature for a short time .The belt is suitable for use in cement,metallurgical and steel industry.
Types and specifications of high temperature resistant convey or belt
| Fabric type |
Fabric specs |
Strength series(N/mm) |
Cover thickness |
Width |
Length |
| 2ply |
3ply |
4ply |
5ply |
6ply |
Upper |
Bottom |
mm |
m |
| EP |
EP80 |
160 |
240 |
320 |
400 |
480 |
4.5-10 |
0-4.5 |
400-2500 |
≤300 |
| EP100 |
200 |
300 |
400 |
500 |
600 |
| EP150 |
300 |
450 |
600 |
750 |
900 |
| EP200 |
400 |
600 |
800 |
1000 |
1200 |
| EP250 |
500 |
750 |
1000 |
1250 |
1500 |
| EP300 |
600 |
900 |
1200 |
1500 |
1800 |
| EP400 |
800 |
1200 |
1600 |
2000 |
2400 |
| EP500 |
1000 |
1500 |
2000 |
2500 |
3000 |
The belt carcass of this product is EP fabric of high modulus, low shrink, and high breaking tensile strength.
Cover rubber of this product uses EPDM rubber or chlorobutadiene rubber that has very good high temperature resistance.
The belt is made with extra care after mixing rubber with high temperature resistant materials, assembling and vulcanizing.
The belt can bear 250°C even 500°C high temperature for a short time.
It is suitable for use in cement, metallurgical and steel industry.
|
